Radiator suitable for David Brown - K922058

Agriline Tractor Radiator 9027 is a bestselling product suitable for David Brown 900 Series with AD4/49 engine, as well as 1200 Series models. Item replaces OEM K922058.

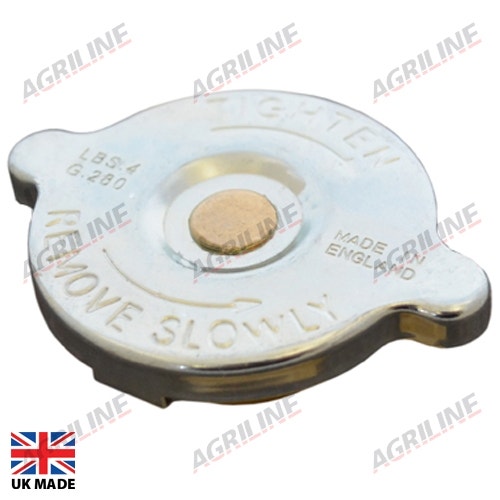

Supplied fitted with radiator cap and tap.

High quality copper and brass construction.

3 Row.

A radiator core is made up of tubes that carry the coolant, and fins that are placed between the tubes to increase air contact surface area to support heat dissipation. ‘Rows’ are the lines of tubes from the front face of the core to the back. 3 lines of tubes are found in a 3-row radiator

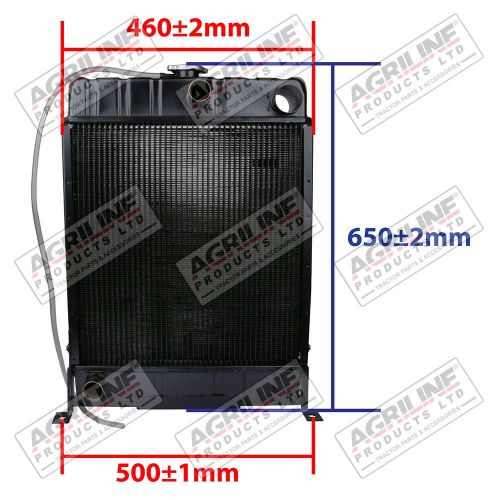

Overall Height (Excludes brackets): 650mm

Overall Width: 460mm

Overall Depth: 84mm

Bolt Hole Centre to Centre: 500mm.

Replacing a leaking radiator is simple. Once you have removed the necessary panels to gain access to the radiator, it is a case of disconnecting pipe work and then removing various retaining bolts. The replacement radiator is the same size and shape as the original therefore everything simply bolts back into place and reconnects before returning the body panels.

This is much simpler, quicker and cheaper than the alternative which is to replace the leaking core. This would entail sourcing a new core, still removing the old radiator, enlisting the services a specialist to remove the leaking core and solder in the new one, before finally being able to re-install.

When fitting your new radiator, it is recommended you replace the 2 rubber mounting pads to minimise vibration which could eventually lead to cracks and other damage. For Rubber Mounting Pads, use Agriline part code 6208 – you will need 2 pieces to perfectly fit your radiator.

When installed, your radiator will need to be filled with a mixture of water and antifreeze. Generally, a 50/50 mix is suitable for more moderate climates where the temperature gets below freezing only on occasion. For 5 Litre Antifreeze, use Agriline part code A-622.

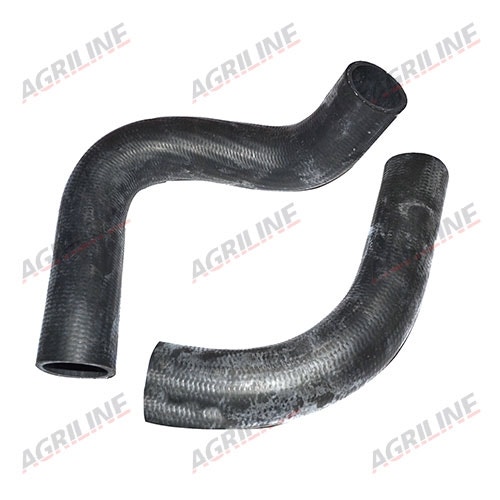

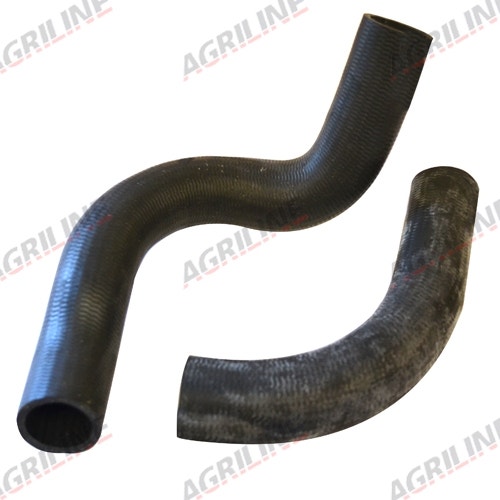

There are 2 hose kit options for the David Brown 990 depending on the tractor serial number, use either Agriline part number 126-Kit or Agriline part number 127-Kit.
