Dynamo
Product Details
Product Details

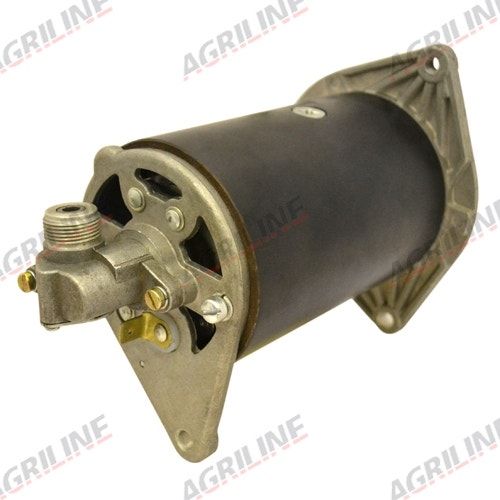

22 Amp Dynamo With 2 Electrical Spade Connection Terminals, Marked D & F, Mounted On The Rear Of The Dynamo End Casing.
12 Volt.
As Original Style, & A Direct Replacement For The Original Lucas 22756 Dynamo. This Dynamo Is Supplied With The Tachometer / Rev Counter Drive Unit Mounted On The Dynamo Ready For Use.
Supplied With A Woodruff Key & Nut Ready For Pulley Installation. The Dynamo Pulley Is Not Included, But If A Pulley Is Required, Agriline Offer A Pulley, Part Number 6150, Which Can Be Found Within The Related Items Section Opposite. This Dynamo Can Be Fitted With A Cooling Fan Behind The Drive Pulley If Required, To Allow For Extra Cooling, Meaning The Dynamo Can Work At It's Very Maximum Capacity.
This Dynamo Will Require Polarising As Part Of The Installation Process. A Set Of Polarising Instructions Will Be Supplied With This Component, A Video Can Also Be Seen Using This Link:- https://www.agrilineproducts.com/polarizing-your-new-dynamo.
Installing Your New Dynamo When Using An Original Ford Wiring Harness / Loom:-
- Position D (Dynamo) Uses The Brown & Yellow Wire.
- Position F (Field) Uses The Brown & Green Wire.
Finished In Black, This Product Will Require Painting If You Require It To Match The Rest Of Your Tractor.
