Starter Motor - 234987A1 suitable for Landini - 3542185M91

Kilowatts - 2.8kw.

Number of Teeth - 10
Tooth Pitch - 15.42mm
Flange Ø - 89mm
Mounting Angle - -40°
Number Of Mounting Bores - 3
Mounting Points Diameter - 127mm
Rotation Direction - Clockwise
For Flywheel Depth - 32.5mm

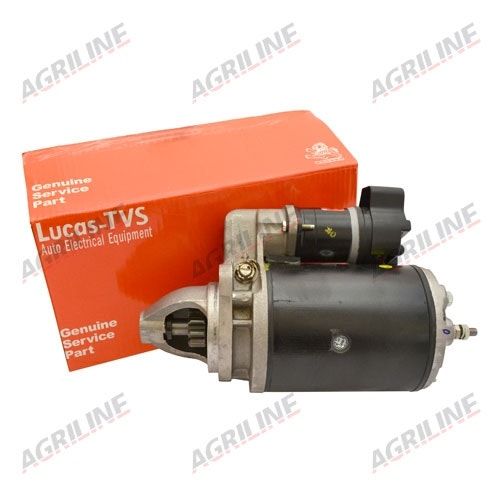

5270 is a direct replacement for the original Lucas M127 / LRS232 starter motor. Commonly fitted to a large range of tractors from Landini, Massey Ferguson, Renault and Case where the starter motor is mounted on the Left-hand side of the engine. Manufactured using high grade copper for the internals this ensures the starter will last and be efficient. All external joints are sealed to keep out any moisture.

Massey Ferguson 165 Tractors with Perkins A4.212 Engine

Massey Ferguson 5400 Series Tractors with Tier 2 Engines

These Starters are also fitted to Matbro TR and TS Telehandlers

Its not uncommon for a starter to fail after years of service, usual signs the starter motor is on its way out would be a single click from the starter or a series of rapid clicks when the ignition switch is turned to the start position, these symptoms can also point to a faulty solenoid rather than the motor itself. Due to the value for money on a completely new starter it makes sense to change the unit rather than just the solenoid.

The solenoid has spade and bolt on terminals ready to connect the wiring up, its important to check that all the wires are making a good connection to both starter motor and tractor otherwise this could lead to further starting issues.

Suitable For - Landini models , 10000, 12500, 13000, 14500, 6030, 6500, 6530, 6550, 6560 L, 6830, 6840, 6860, 6870, 6880, 7500, 7530 L, 7560 L, 7830, 7860, 7870, 7880, 8500, 8530 L, 8560 L, 8830, 8860, 8880, 9080, 9500, 9550, 9880, Blizzard 65, Blizzard 75, Blizzard 85, Blizzard 95, Ghibli 100, Ghibli 80, Ghibli 90, Trekker 75, Trekker 85 for OEM's 3542185M91
