Trailer Brake Coupling - Female - Body Size 1/2"

Part No.

Product Details

57033

Product Details

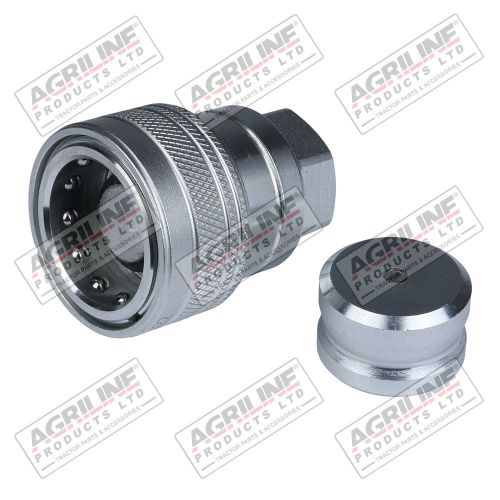

Trailer Brake Coupling - Female - Body Size 1/2" - Thread Size 1/2" BSPP

This series of trailer brake couplings are used to connect the hydraulic braking system of tractors to trailers. The male coupling is normally panel mounted on the tractor.

Body Size: 1/2”
Thread: 1/2" BSPP
D1: 44.0mm / 1.73"
L1: 55.5mm / 2.19"
A/F: 27.0mm / 1.06"

APPLICATIONS
• Trailer connections
• Hydraulic brake systems

FEATURES
• Male couplings can be panel mounted
• Female couplings are supplied with parking station
• Bidirectional flow

SPECIFICATIONS
• Operating temperatures -40°C (-40°F) to 106°C (223°F)
• Carbon steel with trivalent plating
• Fitted with NBR seals
• Conforms to ISO 5676.

PERFORMANCE CHARACTERISTICS
• Maximum Working Pressure (Coupled) - 220 bar (Flow in Litres Per Minute) - 3190 PSI (Flow in Gallons Per Minute)
• Burst Pressure (Coupled) - 900 bar (Flow in Litres Per Minute) - 13050 PSI (Flow in Gallons Per Minute)
• Rated Flow - 45 bar (Flow in Litres Per Minute) – 12 PSI (Flow in Gallons Per Minute)
